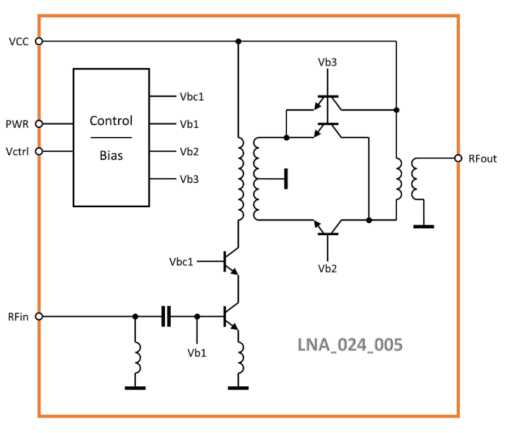

Functional Diagram
Sales & Technical Support
Applications
- 24 GHz Radar Performance Enhancement
Features
- Low-noise amplifier (LNA) for 24-GHz ISM band an beyond
- Single supply voltage of 3.3 V
- Low power consumption of 18 mW
- Fully ESD protected device
- Gain control input
- Power-down mode
- Fast on / off switching for pulsed operation
- QFN16 leadless plastic package 3 mm × 3 mm
- Pb-free, RoHS compliant package
- IC is available as bare die as well
Evaluation Boards / Kits
Available upon request.
Resources
Functional Diagram
| Product Details | |
|---|---|
| Product | LNA_024_005 |
| Frequency | 24 GHz; K-band |
| Frequency Range (Min/Max) | 21.5/28.7 GHz |
| Noise | 3.2 dB |
| Gain | 8/15 dB |
| Single Supply Voltage | 3.3V |
| Current Consumption | 5.6mA |
| Package | QFN16 3×3 mm2 |
The LNA_024_005 is a particularly low-noise amplifier IC developed for high-frequency applications in the K-band. It is an improved version of our LNA_024_004 in terms of functional reliability. The design specifications and footprint of the two ICs are identical.
The low noise figure of down to 3.2 dB of the LNA_024_005 can be achieved by an optimized circuit design in combination with SiGe technology. Its high bandwidth of nearly 7.2 GHz makes it particularly suitable for use in wideband radar applications as well as for signal amplification in k-band wireless RF communication systems.
The low-noise amplifier chip features a gain control function that allows selection between low- and high-gain modes, both of which provide linear amplification. The ability to quickly switch between on and off states also allows for a pulsed mode of operation, e.g., to save power through low duty cycles. A power enable pin allows switching between operating and power-down modes to minimize noise exposure if no signal is present.
