iND880

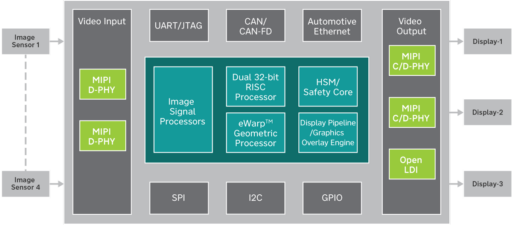

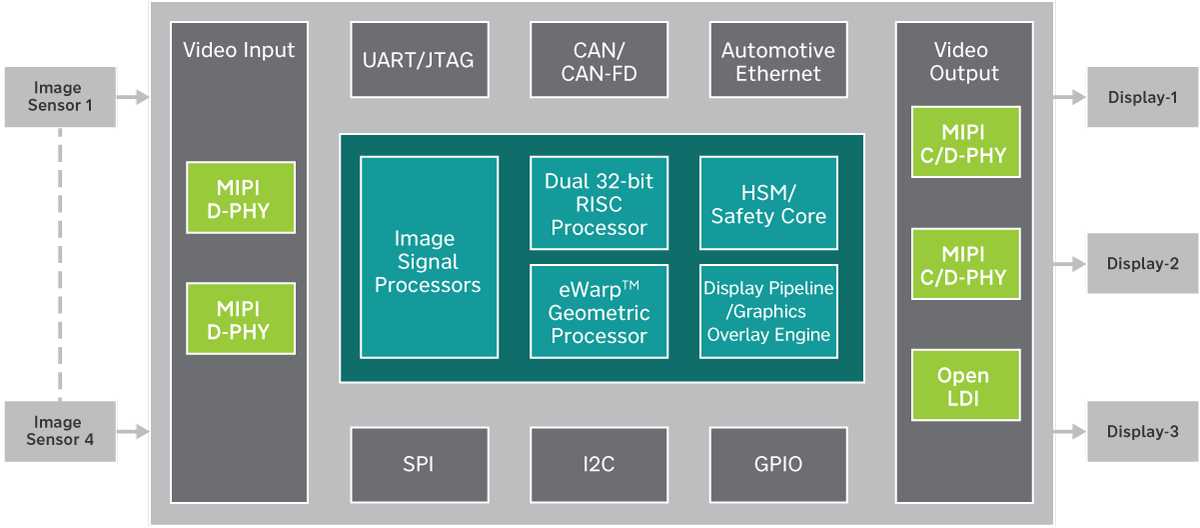

The iND880xx family of Camera Video Processors (CVPs) deliver next generation image processing optimized for both human and computer vision while boasting sub-1ms latency from video-in to video-out. With a high dynamic range image pipeline reaching 144 dB, these processors are finely tuned for optimal performance across various Color Filter Array (CFA) configurations. iND880xx can seamlessly connect to four cameras, offering the versatility to configure and process up to eight distinct image pipelines simultaneously. Anticipating future demands in automotive, robotics, and industrial applications, these products are equipped with enhanced support for new CFAs like RGB-IR, RCCG, RYYCy, RCCC, and RCCB, along with compatibility with multiple high-resolution sensors. Moreover, incorporating a dedicated hardware security and safety engine, the iND880xx family provides customers with a scalable and adaptable platform to meet a wide array of performance requirements and sensor specifications.

Four-camera Fully Independent and Configurable High Dynamic Range Image Signal Processor (ISP)

• High speed multi-channel 24-bit ISP
  • Less than 1ms ISP processing latency
  • Up to 1400 MPixel/second processing
  • Supports up to 4 cameras with 8 independent contexts (e.g. 4x 3MP60, 1x 16MP30, 2x 8MP60)
• Advanced color filter array processing
  • RGB-IR, RGGB, RCCB, RCCG, RYYCy, RCCC, thermal, monochrome
  • Optimized RGB-IR (4×4 only)
• High Dynamic Range (HDR) support
  • 144 dB HDR 24-bit pipeline
  • 2 and 3 exposure on-chip combiner
  • Advanced Local Tone Mapping
• Simultaneous support for different frame rates, resolutions, and CFAs
• Advanced spatial (2D) noise reduction
• Zone-based statistics for AE and AWB
• Color noise reduction

eWARP Geometric Processor

• Proprietary 6th-gen eWARP® geometric processor
• Independently dewarps up to four 200+ degree videos
• Ultra-wide field of view (FOV) lens distortion correction
• Ultra-low latency (typically 1/6th of a frame)
• Dynamic Electronic Pan/Tilt/Zoom (ePTZ)
• Lens distortion, perspective, and alignment correction

Graphics Display Processor

• Scaling, compositing, and blending
• 2D graphics engine supports 2x 1920×1080 at 60fps
• Tessellation engine for lines, quadratic and cubic Bezier curves
• Imaging and pixel engines for rendering and compositing
• Animated bitmap and scalable vector graphics support

Dedicated Hardware Security Module and Safety Island

• Dual core lock step RISC processor for security and safety
• Secure processing and memory environment
• Cryptographic functions: asymmetric/symmetric key encryption and hashing
• Secure boot
• Key provisioning mechanisms
• True Random Number Generator (TRNG)
• Secure debug
• Signature verification on video input
• Signature addition on output streams
• One Time Programming (OTP) memory

Dual 32-bit RISC Tensilica™ LX7 Microprocessor

• Operation up to 714 MHz
• Floating point and multiply/divide accelerators
• 32 KB Instruction cache/32 KB data cache per core

Video Inputs

• Dual 10 Gbps (4-lane @2.5Gbps/ lane) (MIPI D-PHY)
• Supports up to RAW24 and YUV 4:2:2-12
• 16 virtual channels per port

Video Outputs

• Dual 10 Gbps (4-lane @ 2.5Gbps/ lane) MIPI D-PHY or 17.1 Gbps (3x trios @ 2.5Gsps/ lane) MIPI C-PHY
• 8 virtual channels on MIPI output
• Additional OpenLDI output interface
• Customizable embedded data in video stream
• Supports various RGB and YUV formats

System Interfaces

• Two SPI ports
• One Quad SPI (QSPI) for high speed SNOR for boot Flash
• One 100/1000 Ethernet with RGMII
• Four Inter-Integrated Circuit (I2C™) ports (2x master and 2x slave)
• Dual CAN 2.0/CAN-FD ports
• Four UARTs
• Three pulse width modulators (PWM)
• Sixteen dedicated GPIO/GPO
• JTAG port (IEEE Standard 1149.1-1990)

Safety Features

• Support for hostless safety designs with customizable failure recovery management
• Customizable safety pin for host assisted safety design
• ECC support for all processor code spaces
• Interface support for error detection and correction modes
• Windowed Watch Dog Timer
• Power, reset, and clock management
• Process, voltage, and temperature sensors
• ISO 26262 ASIL-B

Electrical Specifications

• Core supply voltage: 0.8V ±5%
• I/O supply voltages: 1.8V and optional 3.3V ±5%
• PLL supply voltage: 1.8V ±5%
• MIPI supply voltage: 0.8V and 1.8V ±5%

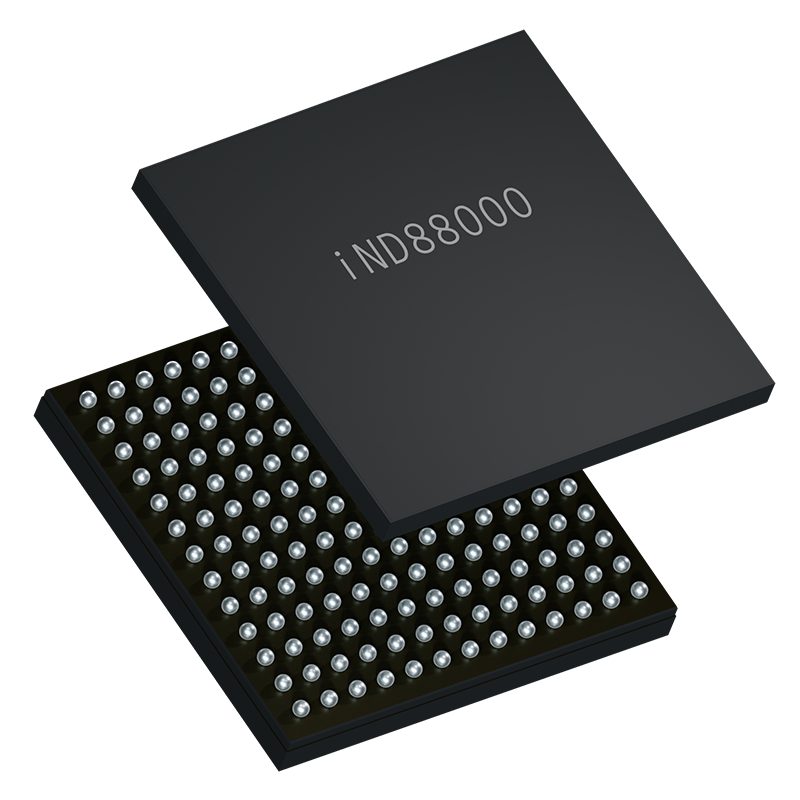

Package

• 169-ball FC-CSP, 7mm x 7mm, 0.5mm pitch
• 196-ball FC-CSP, 12mm x 12mm, 0.8mm pitch
