Product Brief
Sales & Technical SupportApplications
- Automotive USB-PD dedicated charging ports
- Head unit charger
- Driver and passenger charging station
- Rear-seat entertainment consoles and chargers
- Automotive USB-PD charging downstream ports with external USB host controller
Features
- 60W integrated standalone dual-channel USB-PD Controller
- 2x synchronous DC/DC buckboost controllers with low-side FETs
- USB BC 1.2 and USB PD 3.0 controllers
- Supports BC 1.2 DCP, CDP, and proprietary charging modes
- Internal temperature monitor
- GPIO with PWM, UART, LIN, and LED drivers
- Supports Type A + Type C connectors
- Qualified to AEC-Q100 grade 1
- Available as a complete reference design

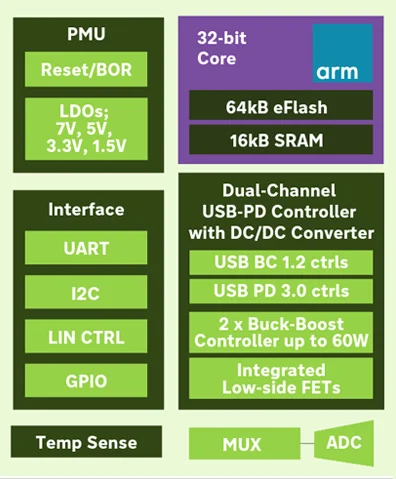

Functional Diagram
| Device Name | Platform | Temp Range | Package | Pins |
|---|---|---|---|---|
| iND87300 | Automotive | -40C to +125C | 8.8×10 mm QFN | 44 Pins @ 0.5 mm Pitch |
The iND87300 is a dual-channel USB-PD controller with integrated buck-boost that supports USB battery charging (BC1.2) and USB power delivery (PD 2.0/3.0). It is a unique, full-system solution that integrates the low-side FETs and includes an Arm® Cortex® M0 core processor with 64kB Flash and 16kB SRAM to provide system control and flexibility.
iND87300 is fully compliant with BC1.2, as well as proprietary charging modes. It supports charging downstream port (CDP), dedicated charging port (DCP) in addition to Apple and Samsung charging schemes. It includes VBAT voltage tolerance up to 40V, USB IO fault tolerant to VBAT and GND, and VBAT short-to-ground protection on the USB connectors.
The iND87300 includes a USB-PD PHY, and firmware stack and supports USB-C channel configuration and PD port control. The integrated 32bit MCU with embedded Flash memory allows vendor-specific message configuration as well as field upgradeability and over-the-air (OTA) updates.
The iND87300 integrated buck-boost controller with co-packaged lowside power FETs (RDSON < 12mOhms) support maximum current up to 5A and can deliver up to 60W output power. The power controller has a programmable output between 3.3 and 21V and uses a spread-spectrum switching scheme to minimize EMI. It incorporates cycle-by-cycle current limiting with over-voltage, under-voltage, and over-temperature protection. It has a programmable reverse current limit, VBUS slew rate, soft-start timer, and operates at >95% efficiency.
This device is fully qualified to AEC-Q100 Grade 1 and contains ESD protection for all data and CC pins: 8kV HBM and 15kV air (IEC 610004-2). indie offers a complete reference design with all the components, including the mechanical package, to rapidly develop a USB-PD solution
